ST630

Saw for cutting plastic pipe up to 630mm

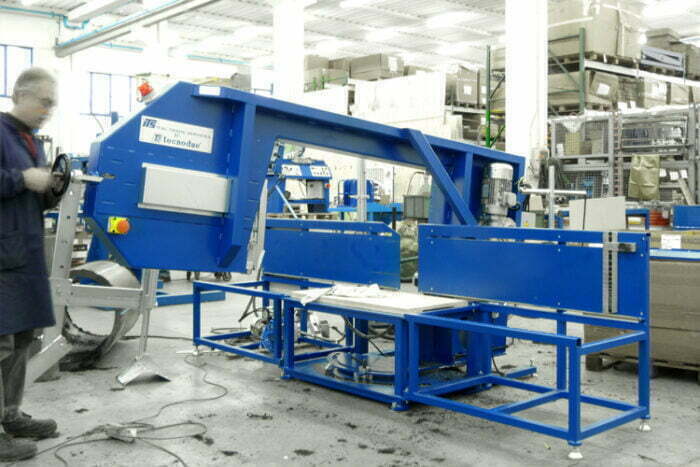

The ST630 Saw consists of a controlled hydraulic saw for cutting plastic pipe.

The saw has a rotating articulated arm for cutting in different radii and in both directions.

The tube is locked with a pneumatic clamp with independent clamping force control.

The cutting works thanks to a hydraulic piston and the speed of the cutting belt can be regulated

Description

Technical Specifications

Velocidad cinta Aprox. 400 m/ min.
Máx. ángulo corte 22,5º – 67º
Potencia 2,6 kW
Voltaje 400 V
Frecuencia 50 HZ
Peso 1.015 Kg
Dimensiones 3.800 x 3.300 x 3000 mm

Realizar consulta.

Additional information

Rango de Tubería

200-630

Ángulo Máximo

67.5

Potencia

2.8

Cilindro Neumático

Ordenacion

2
